Loops exercises (start in class for in class students - distance learning students must complete on their own):



Problem #1: Amazon frequently sends separate packages for the books that you order.  Lets assume that they have a policy to determine location and availability and enter the number of packages that must be sent with the order.  We are now going to do the logic for the program to generate the labels needed.  I also want to write a total for the total number of packages sent.  Follow the flowchart and process the data.  Show me the output that would be produced.  You can just write John Doe label information or Susan Ash label information for the label since I did not give you the address information.



Field

Name of Field

Example of Data

1 - 5

IDNO (Identification Number)

11111

5 - 25

NAME (Customer Name)

John Doe

26 - 100

Other information

101-102

NUMPKG (Number of Packages)

3



IDNO

NAME

Other information

NUMPKG

11111

John Doe



3

12345

Susan Ash



5

22222

Mary Jones



1

23456

Arthur South



6

33333

June Lee



2

34567

Robert Costa



3

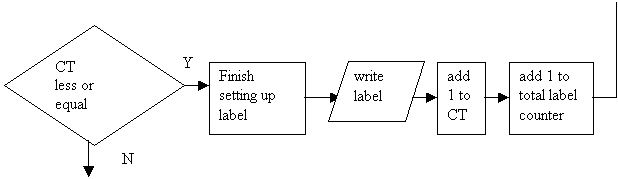

Flowchart: Data: write total
line

close files


Flowchart: Terminator: end-wrapup

Set up total line


Flowchart: Terminator: wrapupFlowchart: Terminator: end-
housekeeping

open files



set data


Flowchart: Terminator: housekeepingFlowchart: Terminator: StartFlowchart: Terminator: stopFlowchart: Predefined Process: wrapupFlowchart: Predefined Process: processFlowchart: Predefined Process: housekeeping















































Flowchart: Data: read a recordFlowchart: Terminator: process










Flowchart: Terminator: end-process

N



CT=1



Set up basic N/A info for label


Flowchart: Terminator: loop





























































Flowchart: Terminator: end-loop











Problem #2:  Your favorite store is having a sale.  This pseudocode shows how the sale works.  Generate a report that shows the price for each item on each day of the sale. The layout of the file and some sample data are shown below.



ITEMNO (item number)

ITEMNAME (item name)

Other information not used

PRICE (price of the item before the sale)

11111

Ceramic Vase



50

12121

Pewter Bowl



100

12345

Victorian Lamp



200

13456

China Dog



20



Mainline - Start                        Wrapup()

    Housekeeping()                          Close files

    Process()                               Return

    Wrapup()                            End-wrapup

    Stop

End-mainline



Housekeeping()

   Set data

   Open files

   Return

End-housekeeping



Process()

   Read a record

   While not EOF

      Loop()

   End-loop

   Return

End-process



Loop()

   Set up line with file information (itemnno & itemname)

   Counter = 1

   workPrice = price of item on file

   While counter < 4

       workPrice = workPrice * .9

       put workPrice on line

       print line

       counter = counter + 1

   end-while-innerloop

   Read a record

   Return

End-loop
